Tinnitus Therapy Synthesizer

What is the Tinnitus Therapy Synthesizer (TTS)?

Tinnitus Therapy Synthesizer (TTS) is a device that combines sound therapy with music creation to help manage tinnitus. Using scientifically-supported methods such as Acoustic Coordinated Reset Neuromodulation (ACRN), Notch Therapy, and Heidelberg Neuro-Music Therapy, TTS influences brain plasticity and reduces tinnitus perception.

It operates on principles of sound therapy and interactive engagement, encouraging users to shape their own therapeutic soundscapes. This blend of therapy and creativity provides a personalized, engaging experience tailored to each individual's tinnitus frequency and needs.

Principles of TTS

TTS operates on the principles of neuroplasticity and sound therapy, helping the brain adjust to and reduce the perception of tinnitus. The device integrates five core methods:

• Acoustic Coordinated Reset Neuromodulation (ACRN)
  ACRN uses carefully detuned sine waves to disrupt abnormal neuron synchronization in the brain. Think of it as playing slightly off-tune sound waves that ‘reset’ the brain’s hearing system. This gentle nudge helps retrain the auditory cortex, encouraging the brain to gradually shift focus away from the tinnitus frequency."
• Notch Therapy
  “This method filters out a narrow frequency band around the user’s tinnitus tone. By targeting the exact frequency of the tinnitus, the brain is gradually trained to ignore it, leading to a long-term reduction in tinnitus perception. It’s like removing one sharp, out-of-tune note from a piece of music—over time, your brain stops focusing on that specific tone, making it less noticeable.”
• Heidelberg Neuro-Music Therapy
  This is a specialized approach to treating chronic tinnitus that combines principles of music therapy with neuroplasticity. Developed as part of research in Germany, this therapy specifically targets patients with "tonal" tinnitus, a type of tinnitus characterized by the perception of a continuous, tonal sound (like a ringing or hum).
• Traditional Sound Therapy
  TTS also includes traditional sound therapy methods, which involve natural sounds and white (and other colors of) noise. These help mask tinnitus sounds and create a calming auditory environment, ideal for relaxation, sleep, or focus.
• Human-Centric Approach
  Tailors therapy to each individual’s tinnitus frequency and needs. Users can adjust elements such as sound frequency, intensity, and duration to ensure the therapy is both effective and customized.
• Creative Engagement
  TTS encourages users to create their own therapeutic soundscapes, deepening their engagement with the therapy. Users can compose their own soundscapes while the device ensures that core therapy methods are applied. By blending sound therapy with creativity, TTS transforms therapy into an active, enjoyable process.

These principles can be applied individually or combined, providing highly flexible treatment options.

Unlike passive listening in traditional therapies, TTS allows users to actively shape their sound therapy by creating personalized soundscapes. With TTS, users don’t just receive therapy—they actively shape it. The ability to create personalized sonic arrangements puts the power of healing back into the hands of those who need it most. This hands-on involvement adds a creative aspect to therapy, making the process enjoyable and fulfilling.

(Detailed information on these methods available in the FAQ section.)

Overview of the Tinnitus Therapy Synthesizer’s Core Principles

Why is it Needed / What Problems Does it Solve?

Tinnitus affects millions of people worldwide, with a significant number finding their condition debilitating. According to the National Institute on Deafness and Other Communication Disorders (NIDCD), over 25 million Americans experience tinnitus, with around 2 million suffering from severe, life-disrupting forms of the condition [1]. In China, prevalence has been found to range from 4.3% to 51.33%[2]. In Europe, tinnitus prevalence ranges between 8.7% and 28.3%, with severe tinnitus impacting around 1.2% of the population [3].  Similarly, 11.9% of adults in Japan experience tinnitus, with higher rates among older adults and those with comorbidities [4]. These figures emphasize the critical need for effective, comprehensive treatment solutions.

The Current Problem: Fragmented and Ineffective Solutions

Most current tinnitus treatments rely on limited and passive sound therapy options, which are often fragmented and fail to provide relief for everyone. Given the highly individualized nature of tinnitus, a one-size-fits-all approach is often inadequate—particularly for those with additional health issues or complex symptoms.

The Tinnitus Therapy Synthesizer (TTS) addresses this issue by combining multiple therapies—including Acoustic Coordinated Reset Neuromodulation (ACRN), Notch Therapy, and enhanced sound therapy—into a single, easy-to-use system. This comprehensive approach allows TTS to be tailored to each individual’s unique tinnitus profile, making therapy more effective and user-friendly.

Addressing Key Issues:

1. Limited Therapeutic Engagement and Dropout Rates:

   • Many current treatments rely on passive listening or repetitive techniques, making them less engaging and more prone to user fatigue. This leads to reduced effectiveness over time and higher dropout rates. Studies show that repetitive and non-interactive sound therapies often result in participants losing interest and dropping out of long-term treatment programs [5].

2. Lack of Integration of Musical Therapy:

   • Therapies that incorporate musical elements often lack interactive features or creative engagement, missing the opportunity to leverage music as an active tool for managing tinnitus and influencing auditory perception.

3. Insufficient Distraction from Tinnitus Perception:

   • Traditional therapies may not effectively divert attention away from tinnitus. Without sufficient distraction, patients struggle to shift their focus, limiting the therapy’s impact on reducing tinnitus perception.

4. Inadequate Personalization:

   • Existing treatments often adopt a one-size-fits-all approach. They do not account for the unique frequency, modulation, or severity of each individual’s tinnitus, leading to suboptimal results.

5. Poor Integration into Daily Life:

   • Most therapies are not designed for seamless use throughout the day. This lack of flexibility makes it difficult for patients to incorporate therapy into their daily routines, reducing long-term adherence and effectiveness.

6. Impact on Mental Health:

   • Tinnitus is frequently accompanied by stress, anxiety, and depression, which are not addressed by traditional sound therapies alone. This psychological burden adds to the challenge of managing tinnitus effectively.

7. Limited Research Tools and Data Collection:

   • Current devices do not offer robust data collection or research capabilities. As a result, understanding and evaluating therapy methods becomes difficult, slowing progress in developing effective treatment protocols.

Where Can it Be Used?

TTS is designed to be flexible across different settings, ensuring broad accessibility and usability:

• Healthcare: TTS is an invaluable tool for audiologists and hearing specialists who manage tinnitus in patients, offering a comprehensive and customizable treatment option.
• Personal Wellness & Creative Therapy: TTS isn’t just for clinical settings—it’s ideal for those seeking to manage tinnitus through creative expression. By allowing users to design their own soundscapes, it transforms therapy into a healing and enjoyable process.
• Academic Research: In audiology labs and research institutions, TTS provides a reliable platform for studying the effectiveness of various sound therapy methods in managing tinnitus.
• Daily Life: Whether during sleep, work, or leisure, TTS can be used as a practical solution to integrate therapy seamlessly into everyday life.

To Whom Does This Device Cater?

The Tinnitus Therapy Synthesizer (TTS) is designed for people across various high-risk professions and general population segments who are prone to tinnitus due to noise exposure or other contributing factors. It blends scientifically-backed methods with creative engagement to offer personalized tinnitus management solutions.

High-Risk Occupations:

• Military & Law Enforcement: Constant exposure to loud environments, gunfire, and explosions increases the risk of tinnitus.
• Aerospace & Aviation: Prolonged exposure to engine noise and high-decibel machinery.
• Music & Entertainment: Musicians and sound engineers face tinnitus due to high-decibel sound exposure.
• Manufacturing & Construction: Workers are exposed to industrial noise, machinery, and tools.
• Emergency Services: First responders often experience noise-induced hearing issues from sirens and loud equipment.
• Gaming Industry: Prolonged exposure to loud sound effects and immersive environments in game development.
• Sports Industry: Loud stadiums and venues can cause hearing damage over time.
• Healthcare Professionals: Workers in noisy environments like operating rooms and radiology departments.

General Population Segments:

• Elderly Individuals: Age-related hearing loss is often accompanied by tinnitus.
• Patients with Chronic Conditions: Conditions such as diabetes, hypertension, migraines, anxiety, and depression increase the risk of tinnitus. Additionally, chemotherapy treatments can induce tinnitus.

How We'll Achieve Success with TTS:

The Tinnitus Therapy Synthesizer (TTS) will be successful when it effectively combines proven therapeutic methods with creativity to enhance sound therapy. Its integration of multiple scientifically-backed techniques into a single device will lead to measurable improvements, such as:

1. Reduced Patient Dropouts:

   • A noticeable decrease in patient dropouts from sound therapy programs due to TTS's engaging and customizable approach.

2. Improved Mental Health Outcomes:

   • Tangible improvements in patient mental health, as tracked through standard metrics like the Tinnitus Handicap Inventory (THI) or Tinnitus Functional Index (TFI).

3. Adoption as a Research Tool:

   • TTS becomes a trusted tool for tinnitus research in audiology labs, leading to reliable data collection and potential breakthroughs in sound therapy studies.

4. An Instrument for Musicians:

   • TTS is widely adopted by musicians, not only as a therapeutic device but also as a creative instrument for composing music, performing live, and generating a new culture of sound therapy-driven art.

How We'll Measure Success:

We’ll know the Tinnitus Therapy Synthesizer (TTS) is successful when:

1. High Usage Among Tinnitus Patients:

   • TTS becomes a frequently chosen option for both creative usage and sound therapy, with users integrating it into their daily routines. This demonstrates the versatility of TTS as both a therapeutic tool and a medium for artistic expression, promoting broader adoption.

2. Adoption in Audiology Labs:

   • TTS is used in research labs to enhance understanding of tinnitus and its management. The device enables reliable, anonymized data collection through automated logging, reducing human error and selective reporting. With standardized therapy settings and real-time progress tracking using self-assessment modules like THI and TFI, TTS helps researchers achieve consistent, accurate results. Its customizable design helps reduce participant dropouts, resulting in more complete datasets and lowering bias in sound therapy research.

3. Tangible Positive Outcomes:

   • Success is measured by reductions in tinnitus severity using scales like the Tinnitus Handicap Inventory (THI) and Tinnitus Functional Index (TFI). These outcomes are tracked through the device’s built-in self-assessment modules, providing real-time feedback on both tinnitus severity and mental health improvements.

4. Embraced by Musicians and Music Lovers:

   • Musicians use TTS to create compositions for both artistic and therapeutic purposes, including live performances and personalized tinnitus relief concerts. Success will be evaluated by the number of compositions created, listener engagement, and community feedback, demonstrating TTS's impact beyond therapy and influencing the creative and therapeutic communities.

Example Walkthrough

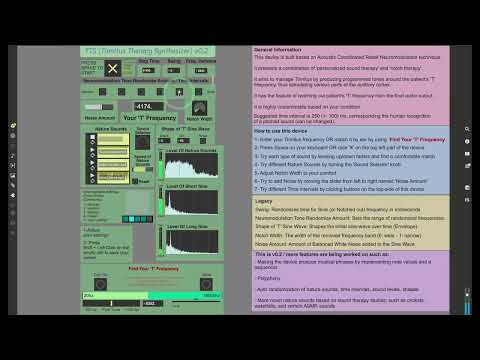

Project TTS(v0.2) - Quick Walkthrough (How To Use It)

In this walkthrough, users will see how easy it is to set up the TTS. The video demonstrates how to input your tinnitus frequency, choose from ACRN, Notch Therapy, or traditional sound profiles, and adjust therapy settings in real-time. The customizable interface is designed for both ease of use and deep personalization.

Example Compositions

~800hz & ~1500hz (Minimal Composition Demo)

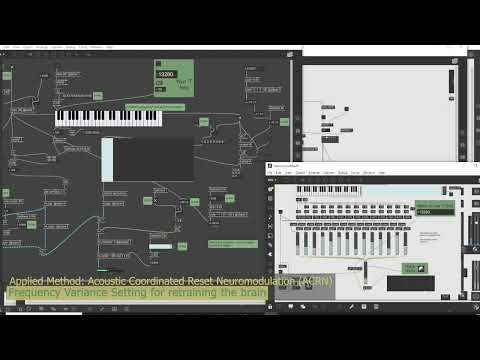

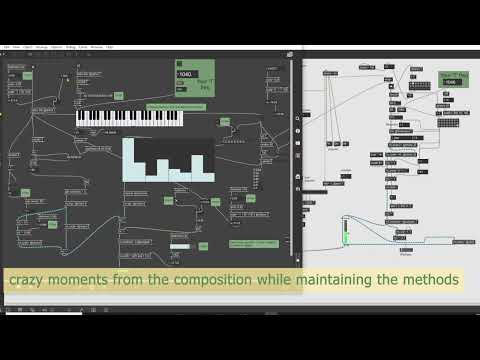

~13000hz Tinnitus Sound Therapy (Composition Demo)

This example composition showcases how TTS blends ACRN, Notch Therapy, and Traditional Sound Therapy into a personalized soundscape. Watch how therapy becomes more than treatment—it’s a creative process. The video demonstrates the combination of these methods to create an immersive auditory experience that aids tinnitus relief.

Live Relief Concerts

Tinnitus Relief Concert (Aug 26th, '24)

A live performance with TTS and related compositions running in the background to perform personalized tinnitus relief compositions. This concert demonstrates how TTS can be used artistically whilst applying therapeutic applications, highlighting its multi-purpose nature as a medical tool and a creative instrument.

---



Tinnitus Sleeping Aid Concert ft. Crickets(Sept. 7th, '24)

A performance featuring TTS compositions layered with cricket sounds, designed to aid sleep and support sound therapy. This demonstration shows how TTS can combine natural ambient sounds with personalized therapeutic compositions, offering a calming auditory experience that supports both relaxation and tinnitus relief.

Inspiration

TTS draws inspiration from the works of historical medical figures Maimonides and Avicenna, who are known for their holistic approach to healing. Both emphasized a deep understanding of the connection between body, mind, and environment, long before modern medicine. In their philosophies:

• Maimonides believed in the power of balanced living, integrating diet, physical exercise, and mental health into treatment[6]. He stressed that treating both the body and the mind was essential to healing.
• Avicenna combined his vast knowledge of medical science with philosophy and ethics. He believed in treating the whole person rather than just symptoms, advocating for personalized care[7] based on the individual’s unique constitution and mental state.

The Tinnitus Therapy System (TTS) embodies this holistic vision by combining traditional wisdom and modern science. It treats tinnitus not just as a physiological condition but as one that deeply affects mental well-being and quality of life. The human-centric approach integrates sound therapy with creative engagement, encouraging users to participate actively in their healing journey. This comprehensive treatment mirrors the philosophies of Maimonides and Avicenna, who understood that healing is as much about the mental and emotional state as it is about treating the body.

Inspired by their philosophies, TTS incorporates a holistic approach to tinnitus management, blending traditional wisdom with modern science. Both historical figures emphasized treating the whole person, including their emotional and mental state, alongside physical symptoms. TTS follows this path by addressing the emotional toll of tinnitus through creative engagement, stress relief, and promoting overall well-being.

1. Personalized Therapy: By tailoring sound profiles to individual needs, TTS ensures that therapy addresses not only the auditory symptoms but also each person’s unique mental and emotional well-being.
2. Active Participation in Healing: TTS encourages users to actively engage in their therapy by creating personalized soundscapes, empowering them to take control of their mental, emotional, and physical health.
3. Easy to Use: TTS features a simple, intuitive interface, allowing users of all technical backgrounds to benefit from its therapy methods without a steep learning curve.
4. Well-Being Focused: Beyond treating tinnitus, TTS addresses anxiety and stress, promoting relaxation and mental resilience through sound therapy and creative expression.
5. Emotional and Mental Support: TTS integrates sound therapy with creative engagement, helping users manage the stress, anxiety, and emotional challenges that often accompany tinnitus - through its social aspects.

Arca Musarithmica & Empowering Anyone (Musically)

TTS is inspired by Athanasius Kircher's Arca Musarithmica, a tool designed to allow anyone to create music using simple combinatorial techniques. Just as the Arca Musarithmica enabled users to arrange predefined musical elements into structured compositions without formal training, TTS empowers both musicians and non-musicians alike to engage in sound creation and therapy. With intuitive tools, TTS merges therapy and music-making, giving everyone the opportunity to participate in their own wellness journey through creative expression and therapeutic soundscapes, regardless of their musical background or skill level.

(https://arca1650.info/about.html - fantastic work by Andrew Cashner)

Similarities Between TTS and Arca Musarithmica:

1. Empowerment of Non-Musicians: Like the Arca, TTS empowers both musicians and non-musicians to engage in music-making. However, in TTS, this is aimed at improving health and wellness through personalized sound therapy.
2. Structured Yet Flexible: Just as the Arca allowed users to combine musical patterns to create compositions, TTS allows users to combine various sound therapies (ACRN, Notch Therapy, and traditional sound therapy) to tailor their therapy experience.
3. Customization: Both systems offer highly customizable experiences—Kircher’s tool allows different musical preferences, while TTS adjusts based on each user’s unique tinnitus profile and preferences.

In summary, TTS reflects the spirit of the Arca Musarithmica by making complex processes—whether music composition or therapeutic soundscapes—accessible, customizable, and beneficial for a broad audience.

Key Features of the Tinnitus Therapy Synthesizer (TTS)

1. Customizable Sound Profiles
   Users can input their specific tinnitus frequency and adjust elements such as time, waveform shape, and variance to tailor the therapy for their individual needs.

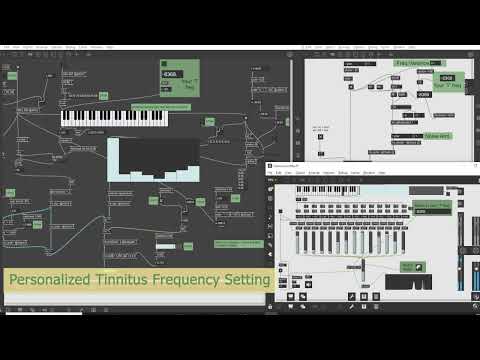

Customizable Tinnitus Freq. & Sonic Possibilities

2. Multi-Therapy Integration
   TTS combines multiple scientifically-backed therapies, allowing users to switch between or blend approaches:

   • Acoustic Coordinated Reset Neuromodulation (ACRN): Uses detuned sound waves to influence the auditory cortex, aiming to reduce tinnitus perception over time.

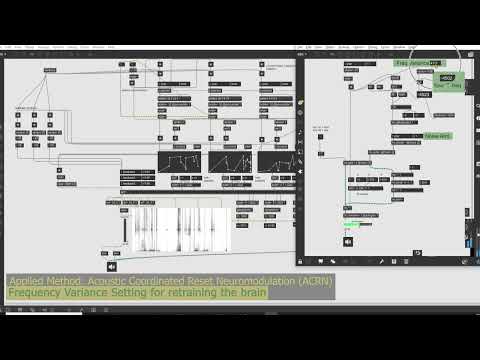

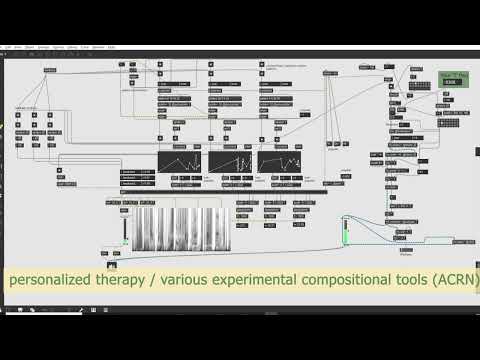

   Pattern Generator - Acoustic CR Neuromodulation

   • Notch Therapy: Filters out the tinnitus frequency from background sounds.



   Notch Therapy Example

   • Traditional Sound Therapy: Employs natural sounds or white noise to reduce the perception of tinnitus.
   • Heidelberg Neuro-Music Therapy: Utilizes music therapy techniques to treat tonal tinnitus by promoting cortical reorganization.



   Heidelberg Method Explanation



   Examples for Heidelberg Method

3. Active Engagement and Real-Time Input-Based Therapy
   TTS transforms therapy from passive listening into an interactive experience by integrating sound therapy with daily activities and computer-based tasks. Users can engage with therapy through various interfaces, such as keyboards, controllers, or mouse movements, making therapy part of their regular activities like writing, gaming, or browsing.

   In gaming, player actions generate therapeutic soundscapes and triggers to mask tinnitus, providing an immersive and engaging experience. Similarly, when interacting with standard computer interfaces, such as typing or moving the mouse, TTS triggers customized masking sounds, making sound therapy a seamless part of everyday computer use.

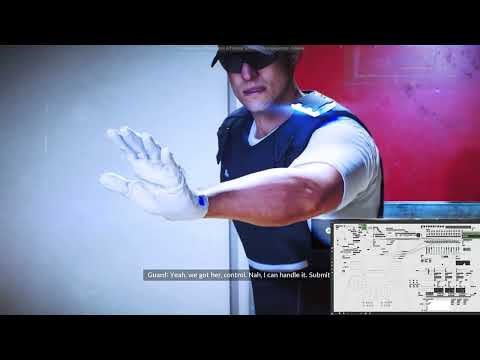

~4680hz Game Integrated Tinnitus Sound Therapy Demo

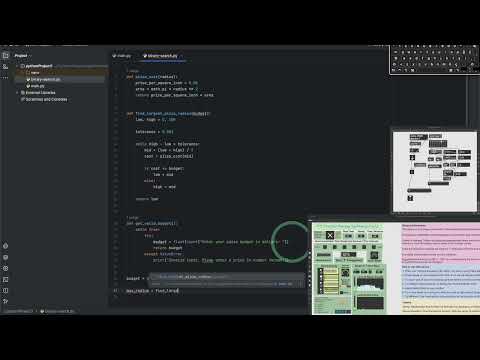

~5220hz Human Interface Integration Demo (Coding)

4. Creative Sound Manipulation
   Users can create and manipulate soundscapes for both therapy and creative expression. This feature empowers individuals to compose therapeutic sound environments tailored to their auditory needs and personal creativity.



Sonic Manipulation Examples & Possibilities

5. Musical Creation and In-depth Composability
   TTS allows users to transform their tinnitus therapy into a creative musical experience by enabling the composition of melodies, phrases, rhythms, and soundscapes based around their tinnitus frequency. By inputting their specific tinnitus frequency, users can craft intricate musical elements that not only incorporate therapeutic sound but also express their artistic vision.

   This feature offers advanced tools for composing algorithmic pieces, including melodies that complement or contrast the tinnitus tone, rhythmic patterns that enhance the auditory experience, and harmonic phrases that align with the therapy’s goals. TTS blends creative expression with sound therapy, empowering users to build custom musical compositions that support their therapy while allowing them to explore their creative potential.



Musical Creation Around Tinnitus Frequency

6. User-Friendly Tinnitus Frequency Detection
   The built-in system offers an intuitive method for detecting the user’s tinnitus frequency. This feature allows users to easily identify and input their tinnitus frequency without the need for advanced technical knowledge, ensuring a seamless and personalized therapy setup.



Built-in Tinnitus Frequency Finder Module

7. Snapshot Feature
   Save and load personalized therapy settings, making it easy to access preferred profiles for future sessions.



Snapshot Saving Feature for Easy Recall

The effectiveness of each therapy in TTS varies based on individual response and brain plasticity. While these methods aim to reduce tinnitus perception and may promote cortical reorganization, outcomes are not guaranteed for all users. TTS addresses this variability by integrating multiple therapies, offering a comprehensive solution so that individuals can explore and find the approach that best suits them.

Future Implementations of TTS

Booklet

A comprehensive guide that accompanies the Tinnitus Therapy Synthesizer (TTS), providing users with detailed instructions, explanations of the therapy methods used, and tips for integrating the device into daily life. The booklet will include:

1. Brief Explanation of Sound Therapy:
   • Sound therapy is a non-invasive treatment that uses sound to help manage tinnitus by promoting neuroplasticity in the brain. The TTS integrates multiple sound therapy methods, including Acoustic Coordinated Reset Neuromodulation (ACRN), Notch Therapy, and traditional sound therapy, to reduce the perception of tinnitus and improve mental well-being.
2. Suggestions:
   • Therapy Application: Regularly use TTS during quiet periods, such as before bed, or during relaxation times. Experiment with different therapy modes and customize the settings to suit your tinnitus frequency and personal preferences.
   • Scheduling: Establish a routine for using TTS, ideally incorporating it into your daily schedule at consistent times.
   • Lifestyle: Maintain a healthy lifestyle to support tinnitus management. This includes balanced eating habits, adequate hydration, and regular exercise. Prioritize good sleep hygiene by using the device as a sleep aid to create a calming environment before bed.
3. CBT & Other Supporting Therapy Methods:
   • Cognitive Behavioral Therapy (CBT) is a highly effective psychological intervention that can complement sound therapy. CBT helps reframe negative thoughts associated with tinnitus, reducing anxiety and improving the overall quality of life. Users can integrate TTS with online CBT programs for a more holistic approach to tinnitus management.
   • Other supporting methods include mindfulness practices, relaxation techniques, and stress management strategies.
4. Patch Examples:
   • The booklet will provide examples of sound patches designed by the community and professionals. These patches will demonstrate different approaches to customizing therapy sessions and inspire users to create their own.
5. Online Community Invitation:
   • A QR code and links to join the TTS online community, where users can share experiences, ask questions, and access additional resources. The community fosters a sense of support and shared learning, and users can also participate in patch sharing for compositions, where they can exchange sound patches and customized therapy settings, further enhancing the collaborative experience.
6. Links for Further Reading:
   • A curated list of scientific articles and research papers that provide deeper insights into the efficacy of sound therapy and tinnitus management. This section will include all relevant studies referenced in the TTS development, with direct links for users to explore.
7. Personal Message & Testimonials:
   • A personal message from the creators of TTS, sharing the journey behind the device and their commitment to helping those with tinnitus. Testimonials from users and experts will highlight the positive impact of TTS on their lives.

Hardware Interface

The Tinnitus Therapy Synthesizer (TTS) offers several potential hardware interfaces:

1. Bedstand Device: A compact, bedside device designed for nighttime therapy, ideal for users who want a dedicated tool for managing tinnitus while they sleep.
2. Synthesizer-Like Box: A more robust option for users who want to integrate TTS into their musical setups or therapy environments, providing greater control and customization.
3. Wearable Device: A portable solution that allows users to carry TTS with them throughout the day, enabling continuous therapy tailored to their daily activities.
4. DIY Kits and Modules: For tech-savvy users interested in building or customizing their own TTS units, providing flexibility and creative freedom.

Alternatively, TTS could be developed as an app, though this comes with potential downsides, such as limitations in sound quality, reduced tactile interaction, and lower therapy efficacy due to hardware constraints.

AI Audiologist

An upcoming feature that will provide personalized guidance and recommendations based on the user’s tinnitus profile. A GPT-based AI Audiologist will analyze TTS user data to suggest optimal settings, track progress, and adapt therapy sessions to the user’s evolving needs. This feature aims to enhance the efficacy of TTS and offer tailored support, making the therapy more accessible and effective.

Online Aspects

The online component of TTS includes a virtual space that complements the physical device:

1. Virtual Community Space: A dedicated platform (Discord server, website portal, or app) where users can connect, share experiences, and participate in support group activities, such as virtual meetups and live relief sessions.
2. Patch & Sound Sharing Environment: A collaborative space where users can share custom sound patches and therapy settings, fostering creativity and innovation within the community.
3. Support Group Activities: Regularly scheduled events, including virtual meetups and live relief sessions, where users can receive support, share insights, and practice together.
4. Inspiration & Personal Experience: A section dedicated to sharing stories of inspiration, personal experiences with tinnitus, and testimonials from those who have found relief through TTS.
5. Testimonials: The platform will highlight the personal journeys of the creators and users of TTS, emphasizing the real-world impact of the device on tinnitus management.

These elements combine to create a comprehensive, user-friendly system that not only manages tinnitus effectively but also fosters a sense of community and support, making the therapeutic process more engaging and enjoyable.

Why Creativity Matters in Tinnitus Management - The Role of Music in Managing Tinnitus

FAQ & More Information

• Tinnitus is the perception of noise or ringing in the ears, often caused by noise exposure, aging, or health conditions.

• TTS provides tools to match your tinnitus frequency, ensuring personalized therapy for maximum effectiveness.

• Residual inhibition refers to the temporary reduction of tinnitus after sound therapy. TTS uses customized sound profiles to extend the effects of residual inhibition.

• Even though I closely follow neuroimaging studies, tinnitus is highly subjective and primarily based on the patient’s declaration of their perception. EEG or fMRI can provide insights into neural activity, but they cannot objectively capture the complex and variable nature of tinnitus that each individual experiences. This makes them less effective as standalone tools for understanding or diagnosing the condition. However, studies in this area are ongoing to find more reliable ways to measure and interpret tinnitus objectively.

• Yes, TTS can be used as a sleep aid, providing a calming sound environment that helps mask tinnitus and promote better sleep quality.

• TTS integrates Cognitive Behavioral Therapy (CBT) techniques and creative engagement, helping to reduce stress and anxiety associated with tinnitus.

• Regular music, while enjoyable, isn’t personalized for tinnitus therapy. It might not target the specific frequencies needed for relief and is more of a passive experience. In contrast, techniques like Acoustic Coordinated Reset Neuromodulation (ACRN) are designed to stimulate the brain in a precise, active way that regular music cannot.
• That said, regular music still plays a role. It's great for learning and relaxation, and when appropriate, Notch Therapy can even be applied to traditional music pieces to enhance tinnitus relief. However, TTS provides the precision and control necessary for more targeted therapy, making it a viable alternative to traditional music.

Acoustic Coordinated Reset (CR) Neuromodulation involves precise timing of sound stimuli to achieve therapeutic effects. Here’s a brief overview of the timing aspects involved in this therapy:

Timing Aspects of Acoustic CR Neuromodulation:

1. Stimulus Sequence:
• Timing of Sound Pulses: The therapy uses a sequence of sound pulses or tones that are carefully timed to disrupt abnormal neural patterns. These sequences are designed to synchronize with the brain’s neural rhythms and reset the maladaptive activity associated with tinnitus.
2. Frequency of Sessions:
• Treatment Schedule: Patients typically undergo sessions several times a week. The frequency and duration of sessions can vary based on the specific protocol and individual needs. Commonly, patients might have sessions 3-5 times per week.
3. Session Duration:
• Length of Each Session: Each therapy session usually lasts between 30 to 60 minutes. The exact duration depends on the treatment plan and the specific requirements of the patient.
4. Overall Treatment Duration:
• Course of Therapy: The total duration of the treatment can range from several weeks to a few months. Patients might need to continue treatment for a period to achieve and maintain relief from tinnitus.
5. Sound Parameters:
• Timing and Coordination: The acoustic stimuli are delivered in a coordinated manner to create a specific temporal pattern. This coordination is crucial for the therapy’s effectiveness, as it helps to target the neural circuits involved in tinnitus.

In summary, Acoustic CR Neuromodulation involves precise timing of sound stimuli delivered during regular therapy sessions over an extended period. The goal is to use these timed sound sequences to help reset neural activity and alleviate tinnitus symptoms.

Timing of Sound Pulses (example):

1. Sound Pulse Sequence:
• Initial Setup: Suppose a patient has tinnitus at a frequency of 1,000 Hz. The therapy involves delivering sound pulses at frequencies around 1,000 Hz, but with specific timing intervals.
2. Pulse Timing:
• Example Sequence: During a therapy session, the device might deliver sound pulses in a pattern like this:
• Pulse 1: A 1-second tone at 1,000 Hz.
• Pulse 2: A brief 0.5-second pause.
• Pulse 3: A 0.5-second tone at 1,020 Hz.
• Pulse 4: A 0.5-second pause.
• Pulse 5: A 1-second tone at 980 Hz.
• Pulse 6: A 1-second pause.
3. Timing Coordination:
• Pattern: This sequence might be repeated every few minutes throughout the session. The pattern is coordinated to fluctuate slightly around the tinnitus frequency, creating a dynamic auditory environment.
4. Synchronization with Neural Rhythms:
• Example of Synchronization: If the brain’s neural rhythms related to tinnitus are disrupted by a consistent sound pattern, the therapy might adjust the pulse timing to sync with the patient’s specific neural activity, such as:
• Pulse 1: 1-second tone at 1,000 Hz (synchronized with a neural peak).
• Pulse 2: 0.5-second pause (allowing for a reset phase).
• Pulse 3: 0.5-second tone at 1,010 Hz (targeting a neural trough).
5. Duration of Therapy:
• Example Session: Each session might last 45 minutes, during which the patient listens to these timed sound pulses through headphones. Over multiple sessions, the timing and frequency may be adjusted based on the patient’s response.

Summary:

In this example, the therapy uses carefully timed sound pulses that are delivered in a specific sequence to match and disrupt the neural patterns associated with tinnitus. By synchronizing the timing of these pulses with the brain’s neural rhythms, the therapy aims to reset the abnormal neural activity and reduce tinnitus symptoms.

Details about pulse timings can be inferred from the general protocols and methodologies described in the studies.

Specific Timings Information:

• Pulse Duration: Typically, each sound pulse lasts around 50 milliseconds to 1 second.
• Interval Timing: Pulses are spaced with short intervals, often ranging from 0.5 to 2 seconds between pulses.
• Session Length: Each therapy session might last between 30 to 60 minutes, with multiple sessions per week over several months.

Heidelberg Model (key points - summary):

1. Individualized Therapy: The therapy is tailored to the specific needs of each patient. It involves a detailed assessment of the patient's tinnitus characteristics, psychological status, and personal preferences.
2. Music Selection and Customization: Music is carefully selected and customized based on the patient's tinnitus profile and musical preferences. The goal is to create a positive listening experience that can help distract from the tinnitus and reduce its perceived loudness.
3. Relaxation Techniques: The model incorporates relaxation techniques such as progressive muscle relaxation, guided imagery, and breathing exercises to help patients manage stress and anxiety associated with tinnitus.
4. Active Music-Making: Patients are encouraged to engage in active music-making, such as playing musical instruments or singing. This active participation can enhance the therapeutic effects and provide a sense of control over the tinnitus.
5. Sound Therapy: Various forms of sound therapy are used, including the use of therapeutic soundscapes, noise generators, and customized sound interventions. These sounds are designed to mask or reduce the perception of tinnitus.
6. Cognitive-Behavioral Therapy (CBT) Techniques: The model integrates CBT techniques to help patients reframe negative thoughts and beliefs about tinnitus. This aspect of the therapy aims to reduce emotional distress and improve coping strategies.
7. Mindfulness and Awareness Training: Patients are taught mindfulness techniques to help them become more aware of their tinnitus without reacting negatively to it. This can reduce the stress and anxiety associated with tinnitus.
8. Group Therapy Sessions: Group therapy sessions are often included to provide social support and allow patients to share their experiences and coping strategies with others who have similar conditions.
9. Home Practice and Homework: Patients are given exercises and activities to practice at home, reinforcing the skills and techniques learned during therapy sessions.
10. Follow-Up and Evaluation: Regular follow-up sessions are conducted to monitor progress, adjust therapy as needed, and provide ongoing support.

Heidelberg Neuro-Music Therapy is a specialized approach to treating chronic tinnitus that combines principles of music therapy with neuroplasticity. Developed as part of research in Germany, this therapy specifically targets patients with "tonal" tinnitus, a type of tinnitus characterized by the perception of a continuous, tonal sound (like a ringing or hum).

Key Features:

• Musical Training: This therapy uses musical training exercises that influence the brain’s cortical plasticity, helping the brain to reorganize how it processes sound.
• Active Engagement: Patients participate in active music-making and listening exercises, which train their brains to process sound differently, thereby reducing the perception of tinnitus.
• Standardized Protocols: It comes in two formats: "standard therapy" (ST) and "compact therapy" (CT), which differ in duration and intensity, but follow the same basic structure.
• Tinnitus-Questionnaire (TQ): Patient progress is measured using the Tinnitus-Questionnaire to assess the severity of tinnitus-related distress before, during, and after therapy.

Effectiveness:

• Research has shown that Heidelberg Neuro-Music Therapy has a quick onset of action and long-lasting effects. Over 80% of patients show significant improvement in their tinnitus perception, with results sustained up to six months after therapy.
• This method has been compared to cognitive behavioral approaches and placebo therapies, with Heidelberg Neuro-Music Therapy showing more reliable and lasting results.

In essence, the therapy harnesses the power of music to help the brain "relearn" how to handle tinnitus sounds, providing relief and improving the quality of life for tinnitus sufferers.

Notch Therapy:

1. Concept:
• Notch Therapy involves the use of sound that is specifically filtered to remove or "notch out" the frequency of the tinnitus from a broad range of sound. This creates a sound profile that targets the frequency of the tinnitus.
2. Mechanism:
• The therapy works by creating a sound profile where the frequency corresponding to the tinnitus is diminished or absent. This is thought to help the brain adjust its processing of the tinnitus sound.
3. Personalization:
• The notch is customized based on the individual’s specific tinnitus frequency. This personalization is crucial for effectiveness, as tinnitus can vary greatly between individuals.
4. Sound Used:
• Notch Therapy typically employs white noise or other broad-spectrum sounds with a notch filter applied to the frequency of the tinnitus. This can help to mask the tinnitus and reduce its prominence.
5. Goal:
• The primary goal is to retrain the brain’s auditory system by reducing the prominence of the tinnitus frequency. Over time, this can help to make the tinnitus less noticeable and less distressing.
6. Usage:
• It is often used as part of a broader tinnitus management plan, which might include other therapies and sound enrichment strategies.

References

1. The National Institute on Deafness and Other Communication Disorders (ATA)
   Link: https://www.ata.org/about-tinnitus/why-are-my-ears-ringing/#:~
   =The%20National%20Institute%20on%20Deafness,experience%20some%20form%20of%20tinnitus

2. The Journal of Laryngology & Otology, Volume 135, Issue 1 (Journal)
   Link: https://doi.org/10.1017/S002221512000256X

3. Lancet Regional Health Europe (Lancet)
   Link: https://pubmed.ncbi.nlm.nih.gov/34950918/

4. Prevalence of Tinnitus in Community-Dwelling Japanese Adults (PMC)
   Link: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC3899423/

5. Burns-O’Connell, G., Stockdale, D., Cassidy, O., Knowles, V., & Hoare, D.J. (2021). "Surrounded by Sound: The Impact of Tinnitus on Musicians." International Journal of Environmental Research and Public Health, 18(9036). Available at: https://www.mdpi.com/1660-4601/18/17/9036

6. K. Fujii, C. Nagata, K. Nakamura, T. Kawachi, N. Takatsuka, S. Oba, and H. Shimizu, "The Maimonides Model for a Regimen of Health," Journal of Epidemiology, 2011;21(4):299-304. doi: 10.2188/jea.je20100124. Available at: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC7571434/

7. Taghavi Shirazi M, Arabi M. Tinnitus in Avicenna's Canon of Medicine. Iran J Med Sci. 2023 Jul;48(4):433-435. doi: 10.30476/ijms.2022.96829.2845. PMID: 37456205; PMCID: PMC10349155. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC10349155/

8. Niu, Y., & You, Y. (2023). The effect of music therapy on tinnitus: A systematic review. Medicine, 102(50), e36199. Retrieved from https://doi.org/10.1097/MD.0000000000036199.

9. Adamchic I, Toth T, Hauptmann C, Walger M, Langguth B, Klingmann I, Tass PA. Acute effects and after-effects of acoustic coordinated reset neuromodulation in patients with chronic subjective tinnitus. Neuroimage Clin. 2017 May 28;15:541-558. doi: 10.1016/j.nicl.2017.05.017. PMID: 28652968; PMCID: PMC5476468. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC5476468/

---



Supporting Research

• "The state of the art of sound therapy for subjective tinnitus in adults"

Summary: Reviews the various forms of sound therapy, emphasizing the superiority of customized over non-customized approaches.

Link: Sound Therapy for Tinnitus

• "Mechanism and research progresses of personalized music in the treatment of tinnitus"

Summary: Discusses the mechanisms and methods of personalized music therapy for tinnitus.

Link: Personalized Music Therapy

• "Sound therapy for tinnitus patients"

Summary: Provides an overview of sound therapy modalities and their benefits for tinnitus patients.

Link: Sound Therapy Modalities

• "Personalized music therapy combined with medication as treatment for tinnitus"

Summary: Examines the efficacy of combining personalized music therapy with medication in treating tinnitus.

Link: Music Therapy and Medication

• "Sound therapy (using amplification devices and/or sound generators) for tinnitus"

Summary: Evaluates the effects of using hearing aids, sound generators, and combination devices for tinnitus therapy.

Link: Amplification Devices for Tinnitus

• "Efficacy of sound therapy interventions for tinnitus management"

Summary: A meta-analysis comparing the effectiveness of different sound therapy interventions for tinnitus.

Link: Sound Therapy Interventions

• "A new method of synthesizing personalized tinnitus rehabilitation sound based on iterative function system algorithm"

Summary: Introduces a new method for creating personalized tinnitus rehabilitation sounds using an iterative function system algorithm.

Link: Personalized Tinnitus Sound Synthesis

• "Customized Versus Noncustomized Sound Therapy for Treatment of Tinnitus: A Randomized Crossover Clinical Trial"

Summary: Compares the effectiveness of customized sound therapy to broadband noise in reducing tinnitus symptoms.

Link: Customized Sound Therapy

• "Investigating the Effects of a Personalized, Spectrally Altered Music-Based Sound Therapy on Treating Tinnitus: A Blinded, Randomized Controlled Trial"

Summary: Assesses the effectiveness of personalized, spectrally altered music-based sound therapy over a 12-month period.

Link: Spectrally Altered Music Therapy

• "Adapting Personal Therapies Using a Mobile Application for Tinnitus Rehabilitation: A Preliminary Study"

Summary: Evaluates the potential efficacy of a smartphone-based CBT and sound therapy platform for treating tinnitus.

Link: Mobile Application for Tinnitus
